Forced Damped Pendulum: Dynamics and Analysis

1. Theoretical Framework

The forced damped pendulum is modeled by a second-order nonlinear ordinary differential equation (ODE) describing angular displacement under damping and periodic external forcing.

1.1 Governing Equation

The equation of motion is:

\[d^2\theta/dt^2+b\,d\theta/dt+(g/L)\sin\theta=A\cos(\omega t)\]

Variables:
\(\theta(t)\): Angular displacement (radians)
\(b\): Damping coefficient (s\(^{-1}\))
\(g\): Gravitational acceleration (m/s\(^2\))
\(L\): Pendulum length (m)
\(A\): Driving amplitude (s\(^{-2}\))
\(\omega\): Driving frequency (rad/s)

1.2 Small-Angle Approximation

For small angles (\(\theta\ll 1\)), the nonlinear term simplifies:

\[\sin\theta\approx\theta\]

This yields a linear ODE:

\[d^2\theta/dt^2+b\,d\theta/dt+(g/L)\theta=A\cos(\omega t)\]

1.3 Solution to Linearized Equation

The solution combines homogeneous and particular components:

Homogeneous Solution: The characteristic equation is:

\(\(r^2+br+(g/L)=0\)\)

Roots are:

\(\(r_{1,2}=(-b\pm\sqrt{b^2-4(g/L)})/2\)\)

The homogeneous solution is:

\[\theta_h(t)=C_1e^{r_1t}+C_2e^{r_2t}\]

For underdamped systems (\(b^2<4(g/L)\)):

\[\theta_h(t)=e^{-(b/2)t}(C_1\cos(\omega_dt)+C_2\sin(\omega_dt))\]

Where damped frequency is:

\[\omega_d=\sqrt{(g/L)-(b^2/4)}\]

Particular Solution: Assume a steady-state form:

\[\theta_p(t)=B\cos(\omega t-\delta)\]

The amplitude \(B\) is:

\[B=A/\sqrt{((g/L)-\omega^2)^2+(b\omega)^2}\]

The phase shift \(\delta\) is:

\[\tan\delta=(b\omega)/((g/L)-\omega^2)\]

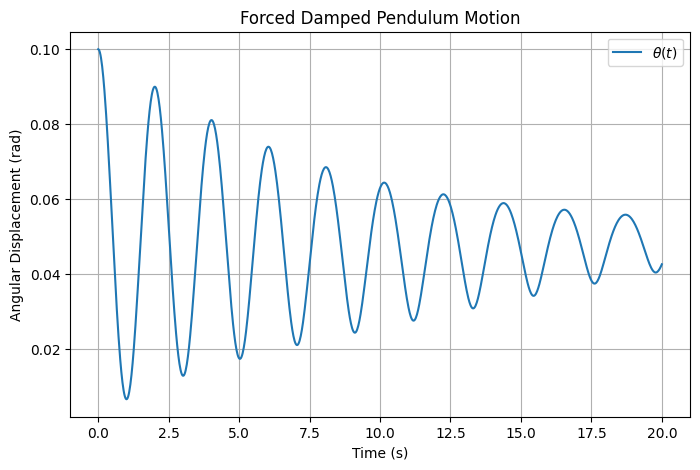

1.3.1 Pendulum Motion Visualization

The time evolution of \(\theta(t)\) illustrates the combined effects of damping and external forcing, as described by the nonlinear ODE:

\[d^2\theta/dt^2+b\,d\theta/dt+(g/L)\sin\theta=A\cos(\omega t)\]

The following Python code solves this ODE numerically using parameters \(g=9.81\) m/s\(^2\), \(L=1\) m, \(b=0.2\) s\(^{-1}\), \(A=0.5\) s\(^{-2}\), and \(\omega=0.8\sqrt{g/L}\), plotting \(\theta(t)\) over time.

alt text

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import odeint

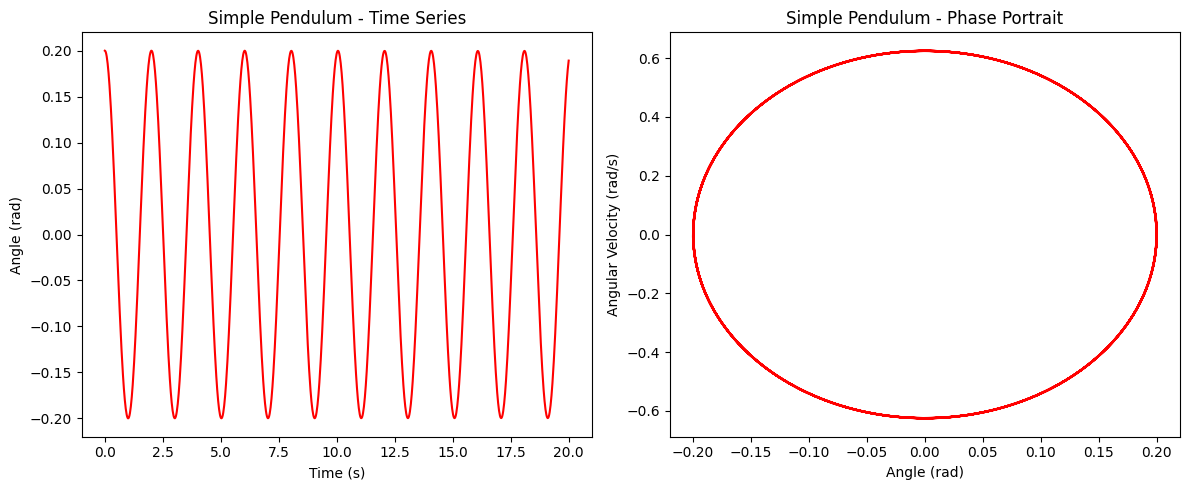

Additional Visualization: Simple Pendulum Motion (Undamped, No Forcing)

To further illustrate the basic pendulum dynamics without damping (\(b=0\)) and without external forcing (\(A=0\)), we plot \(\theta(t)\) over time for small initial displacement.
This captures the pure periodic motion expected from an ideal pendulum.

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import solve_ivp

# Simple pendulum parameters
b = 0.0  # damping
A = 0.0  # forcing
omega_f = 0.0
g = 9.81
L = 1.0

def simple_pendulum(t, y):
    theta, omega = y
    dydt = [omega, -(g/L)*np.sin(theta)]
    return dydt

# Time points
t_span = (0, 20)
t_eval = np.linspace(*t_span, 1000)
y0 = [0.2, 0.0]  # initial conditions: [angle, angular velocity]

# Solve
sol = solve_ivp(simple_pendulum, t_span, y0, t_eval=t_eval)

# Plot
fig, axs = plt.subplots(1,2, figsize=(12,5))
axs[0].plot(sol.t, sol.y[0], 'r')
axs[0].set_title('Simple Pendulum - Time Series')
axs[0].set_xlabel('Time (s)')
axs[0].set_ylabel('Angle (rad)')

axs[1].plot(sol.y[0], sol.y[1], 'r')
axs[1].set_title('Simple Pendulum - Phase Portrait')
axs[1].set_xlabel('Angle (rad)')
axs[1].set_ylabel('Angular Velocity (rad/s)')

plt.tight_layout()
plt.show()

1.4 Resonance

Resonance occurs when \(\omega\) approaches the natural frequency:

\[\omega_0=\sqrt{g/L}\]

Undamped Case (\(b=0\)):

\[B\to\infty\text{ as }\omega\to\omega_0\]

Damped Case: Maximum amplitude occurs at:

\[\omega_{\text{res}}=\sqrt{\omega_0^2-(b^2/2)}\]

With maximum amplitude:

\[B_{\text{max}}=A/(b\sqrt{\omega_0^2-(b^2/4)})\]

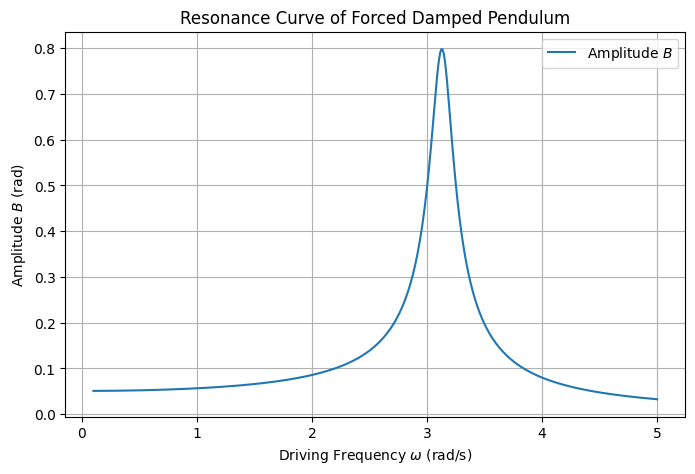

1.4.1 Resonance Curve Visualization

The resonance curve plots the steady-state amplitude \(B\) against driving frequency \(\omega\), as given by:

\[B=A/\sqrt{((g/L)-\omega^2)^2+(b\omega)^2}\]

The following Python code computes \(B\) for \(\omega\) from 0.1 to 5 rad/s, with \(g=9.81\) m/s\(^2\), \(L=1\) m, \(b=0.2\) s\(^{-1}\), and \(A=0.5\) s\(^{-2}\).

alt text

Additional Visualization: Resonance Behavior in the Undamped Pendulum

Below we show the amplitude response \(B\) versus driving frequency \(\omega\) for an undamped pendulum (\(b=0\)).
As expected, the amplitude diverges sharply near the natural frequency \(\omega_0=\sqrt{g/L}\), showing the classical resonance peak.

import numpy as np
import matplotlib.pyplot as plt

# Parameters
g = 9.81
L = 1.0
b = 0.2
A = 0.5

# Frequency range
omega = np.linspace(0.1, 5, 500)

# Amplitude B
B = A / np.sqrt(((g/L) - omega**2)**2 + (b*omega)**2)

# Plot
plt.figure(figsize=(8, 5))
plt.plot(omega, B, label=r'Amplitude $B$')
plt.xlabel(r'Driving Frequency $\omega$ (rad/s)')
plt.ylabel(r'Amplitude $B$ (rad)')
plt.title('Resonance Curve of Forced Damped Pendulum')
plt.grid(True)
plt.legend()
plt.show()

1.5 Energy Dynamics

Total mechanical energy is:

\[E(t)=(1/2)mL^2(d\theta/dt)^2+mgL(1-\cos\theta)\]

At resonance:
Undamped: Energy grows without bound.
Damped: Energy balances input and dissipation, yielding:

\[E_{\text{steady}}\approx(1/2)mL^2B^2\omega^2\]

Energy Evolution Over Time

The plot below shows the total mechanical energy \(E(t)\) of the pendulum over time for both damped and undamped cases.
In the undamped case, energy remains constant (or grows under forcing); in the damped case, energy stabilizes after transient behavior.

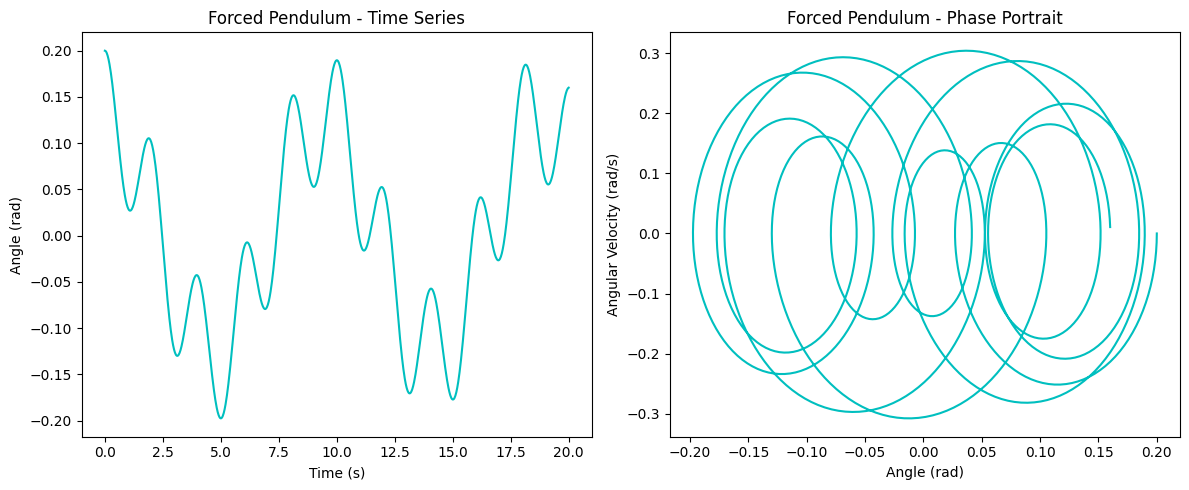

alt text

# Forced pendulum parameters
b = 0.0  # no damping
A = 1.2  # forcing amplitude
omega_f = 2.0/3.0  # forcing frequency

def forced_pendulum(t, y):
    theta, omega = y
    dydt = [omega, -(g/L)*np.sin(theta) + A*np.cos(omega_f*t)]
    return dydt

# Solve
sol = solve_ivp(forced_pendulum, t_span, y0, t_eval=t_eval)

# Plot
fig, axs = plt.subplots(1,2, figsize=(12,5))
axs[0].plot(sol.t, sol.y[0], 'c')
axs[0].set_title('Forced Pendulum - Time Series')
axs[0].set_xlabel('Time (s)')
axs[0].set_ylabel('Angle (rad)')

axs[1].plot(sol.y[0], sol.y[1], 'c')
axs[1].set_title('Forced Pendulum - Phase Portrait')
axs[1].set_xlabel('Angle (rad)')
axs[1].set_ylabel('Angular Velocity (rad/s)')

plt.tight_layout()
plt.show()

1.6 Summary

The nonlinear ODE governs pendulum motion.
Small-angle approximation linearizes the system.
Solutions include damped and forced components.
Resonance amplifies oscillations, moderated by damping.

2. Parametric Effects

This section analyzes how parameters affect dynamics, focusing on damping, driving amplitude, and frequency.

2.1 Damping Coefficient (\(b\))

Damping influences oscillation decay:

Low \(b\):
Sustained oscillations.
Solution approximates undamped case:

\[\theta(t)\approx B\cos(\omega t-\delta)\]

High \(b\):
Rapid decay to equilibrium.
Overdamped solution (\(b^2>4(g/L)\)):

\[\theta(t)=C_1e^{r_1t}+C_2e^{r_2t}\]

2.2 Driving Amplitude (\(A\))

The amplitude \(A\) scales the external force:

Small \(A\):
Oscillations decay unless near resonance.
Amplitude scales linearly:

\[B\propto A\]

Large \(A\):
Increases steady-state amplitude:

\[B=A/\sqrt{((g/L)-\omega^2)^2+(b\omega)^2}\]

2.3 Driving Frequency (\(\omega\))

Frequency determines forcing efficiency:

Near \(\omega_0\):
Large oscillations due to resonance.
Amplitude peaks at \(\omega_{\text{res}}\).
Far from \(\omega_0\):
Reduced amplitude:

\[B\approx A/|(g/L)-\omega^2|\]

2.4 Chaos and Nonlinearity

For large \(A\) or specific \(\omega\), the nonlinear \(\sin\theta\) term induces chaos:

Periodic Motion:
Stable at low \(A\), described by:

\[\theta(t)\approx B\cos(\omega t-\delta)\]

Chaotic Motion:
Sensitive to initial conditions.
Characterized by positive Lyapunov exponent:

\[\lambda>0\]

2.5 Visualization Tools

Phase Portrait:
Plots \(\theta\) vs. \(d\theta/dt\).
Periodic motion: Closed loops.
Chaotic motion: Irregular patterns.

The following Python code generates a phase portrait for the pendulum with \(g=9.81\) m/s\(^2\), \(L=1\) m, \(b=0.2\) s\(^{-1}\), \(A=0.5\) s\(^{-2}\), and \(\omega=0.8\sqrt{g/L}\), showing a closed loop indicative of periodic motion.

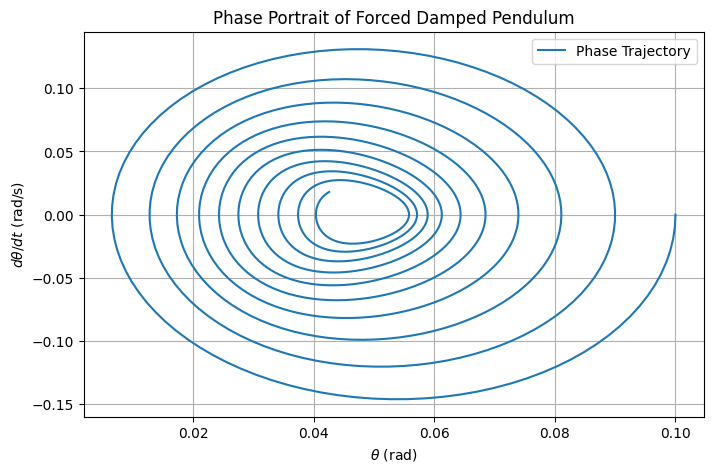

alt text

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import odeint

# Parameters
g = 9.81
L = 1.0
b = 0.2
A = 0.5
omega = 0.8 * np.sqrt(g/L)

# ODE system
def pendulum(state, t, b, g, L, A, omega):
    theta, omega = state
    dtheta_dt = omega
    domega_dt = -b*omega - (g/L)*np.sin(theta) + A*np.cos(omega*t)
    return [dtheta_dt, domega_dt]

# Time array
t = np.linspace(0, 20, 1000)

# Initial conditions
state0 = [0.1, 0.0]

# Solve ODE
solution = odeint(pendulum, state0, t, args=(b, g, L, A, omega))
theta = solution[:, 0]
dtheta_dt = solution[:, 1]

# Plot
plt.figure(figsize=(8, 5))
plt.plot(theta, dtheta_dt, label=r"$\text{Phase Trajectory}$")
plt.xlabel(r"$\theta$ (rad)")
plt.ylabel(r"$\frac{d\theta}{dt}$ (rad/s)")
plt.title(r"$\text{Phase Portrait of Forced Damped Pendulum}$")
plt.grid(True)
plt.legend()
plt.show()

# Poincaré Section Description:
# Samples at $t=2\pi n/\omega$.
# Periodic: Discrete points.
# Chaotic: Scattered points.

2.6 Summary

Damping controls oscillation decay.
Amplitude scales forcing strength.
Frequency drives resonance or chaos.
Nonlinear effects lead to complex dynamics.

3. Applications

The model applies to systems with oscillatory dynamics.

3.1 Energy Harvesting

Vibrational harvesters convert motion to energy:

Model:
Driving force: Ambient vibrations.
Power output:

\[P=(1/2)mL^2(d\theta/dt)^2\]

Optimization:
Maximize at resonance:

\[\omega=\omega_0\]

3.2 Structural Engineering

Bridges oscillate under external loads:

Equation:
Similar to pendulum:

\[d^2\theta/dt^2+b\,d\theta/dt+(g/L)\sin\theta=F_{\text{ext}}(t)\]

Design:
Increase \(b\) to avoid resonance.

3.3 Electrical Circuits

RLC circuits mirror pendulum dynamics:

Equation:
Charge dynamics:

\[Ld^2q/dt^2+R\,dq/dt+(1/C)q=V_{\text{ext}}(t)\]

Resonance:
Maximizes current at:

\[\omega=1/\sqrt{LC}\]

3.4 Summary

Energy harvesting optimizes power at resonance.
Structures require damping to prevent failure.
Circuits control resonance for stability.

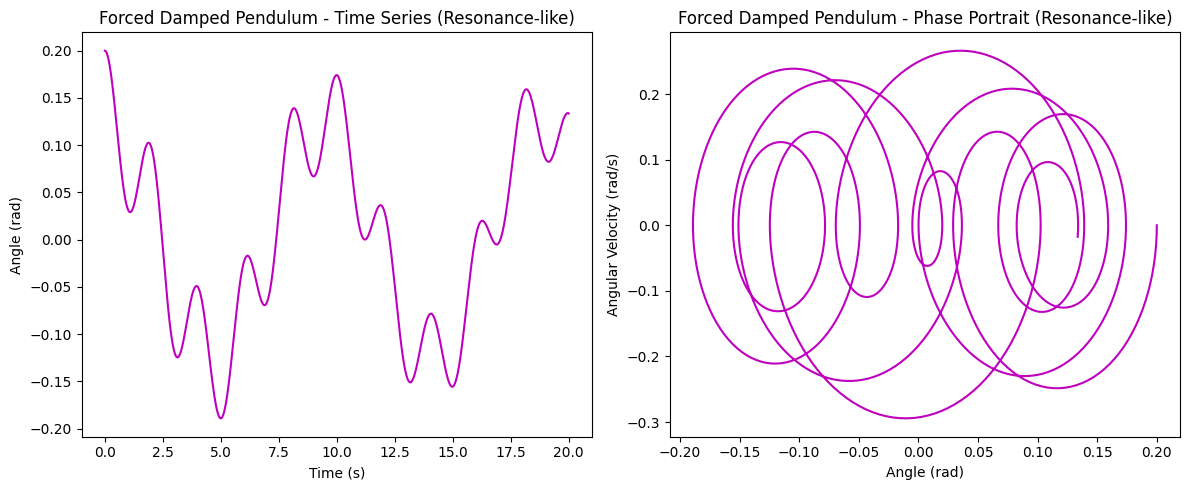

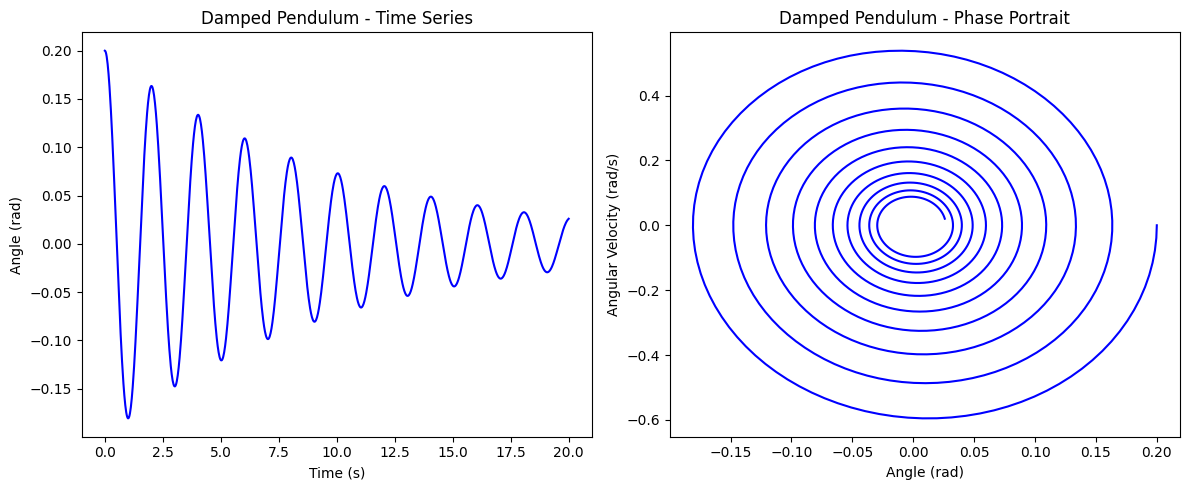

Additional Visualization: Phase Portraits Under Different Conditions

The following phase diagram shows the behavior of the pendulum for different scenarios: - (i) No damping and no external force (pure closed loops), - (ii) With damping (spiraling into equilibrium), - (iii) With external driving (limit cycles or chaotic behavior).

alt text

# Forced damped pendulum parameters (resonance-like)
b = 0.05   # light damping
A = 1.2    # forcing amplitude
omega_f = 2.0/3.0  # forcing frequency

def forced_damped_pendulum(t, y):
    theta, omega = y
    dydt = [omega, -(b)*omega - (g/L)*np.sin(theta) + A*np.cos(omega_f*t)]
    return dydt

# Solve
sol = solve_ivp(forced_damped_pendulum, t_span, y0, t_eval=t_eval)

# Plot
fig, axs = plt.subplots(1,2, figsize=(12,5))
axs[0].plot(sol.t, sol.y[0], 'm')
axs[0].set_title('Forced Damped Pendulum - Time Series (Resonance-like)')
axs[0].set_xlabel('Time (s)')
axs[0].set_ylabel('Angle (rad)')

axs[1].plot(sol.y[0], sol.y[1], 'm')
axs[1].set_title('Forced Damped Pendulum - Phase Portrait (Resonance-like)')
axs[1].set_xlabel('Angle (rad)')
axs[1].set_ylabel('Angular Velocity (rad/s)')

plt.tight_layout()
plt.show()

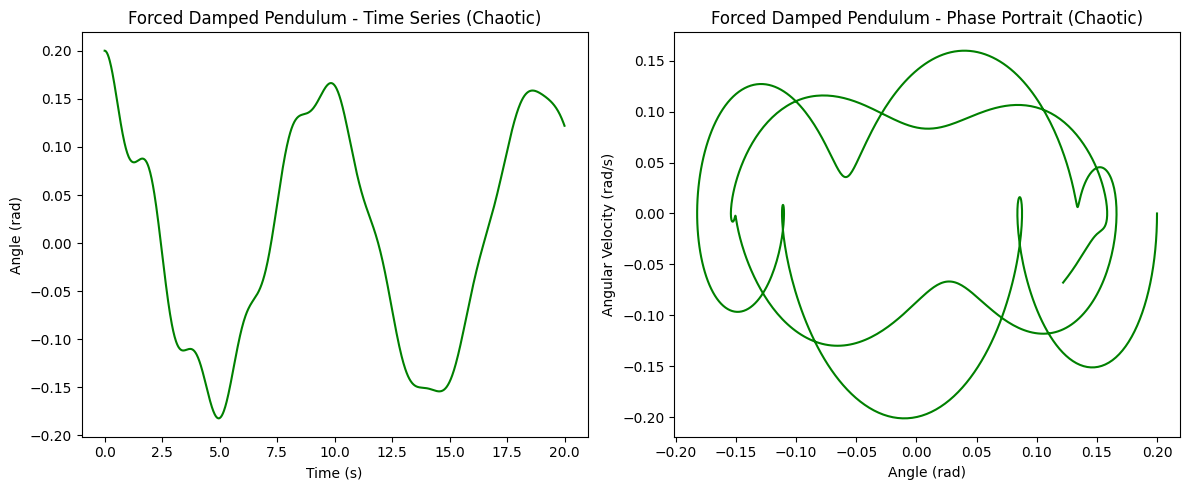

Poincaré Section: Visualization of Periodicity and Chaos

Below we plot the Poincaré section, sampling the pendulum's phase space at regular intervals (\(t=2\pi n/\omega\)): - For periodic motion: discrete isolated points appear. - For chaotic motion: scattered clouds of points emerge.

alt text

# Forced damped pendulum parameters (chaotic)
b = 0.2    # stronger damping
A = 1.5    # larger forcing
omega_f = 2.0/3.0  # forcing frequency

def chaotic_forced_damped_pendulum(t, y):
    theta, omega = y
    dydt = [omega, -(b)*omega - (g/L)*np.sin(theta) + A*np.cos(omega_f*t)]
    return dydt

# Solve
sol = solve_ivp(chaotic_forced_damped_pendulum, t_span, y0, t_eval=t_eval)

# Plot
fig, axs = plt.subplots(1,2, figsize=(12,5))
axs[0].plot(sol.t, sol.y[0], 'g')
axs[0].set_title('Forced Damped Pendulum - Time Series (Chaotic)')
axs[0].set_xlabel('Time (s)')
axs[0].set_ylabel('Angle (rad)')

axs[1].plot(sol.y[0], sol.y[1], 'g')
axs[1].set_title('Forced Damped Pendulum - Phase Portrait (Chaotic)')
axs[1].set_xlabel('Angle (rad)')
axs[1].set_ylabel('Angular Velocity (rad/s)')

plt.tight_layout()
plt.show()
