Problem 1

Wave Interference Patterns on a Water Surface

1. Selecting a Regular Polygon

Introduction

In wave physics, interference occurs when two or more waves overlap, resulting in regions of constructive and destructive interference. To systematically analyze these patterns, we consider multiple point wave sources positioned at the vertices of a regular polygon. This setup allows us to explore how symmetric arrangements of sources influence the resulting wave field.

Mathematical Definition of a Regular Polygon

A regular polygon with \(N\) sides is a closed geometric figure where all sides are of equal length and all internal angles are equal. The vertices of such a polygon, when inscribed in a circle of radius \(R\), can be determined using trigonometric functions.

For a polygon centered at the origin, the coordinates of the \(i\)-th vertex are given by:

\[x_i=R\cos\left(\frac{2\pi i}{N}\right),\quad y_i=R\sin\left(\frac{2\pi i}{N}\right),\quad i=0,1,2,\dots,N-1\]

where: - \(R\) is the circumradius of the polygon,

\(N\) is the number of sides (hence, the number of sources),
\(i\) indexes the vertices counterclockwise starting from an initial reference point.

Choosing the Regular Polygon

The choice of \(N\) influences the symmetry of the interference pattern. Common selections include:

Equilateral Triangle (\(N=3\)): Yields a threefold symmetric interference pattern.
Square (\(N=4\)): Produces a fourfold symmetric pattern with central and diagonal wave reinforcements.
Pentagon (\(N=5\)): Generates more complex wave interactions with fivefold rotational symmetry.
Hexagon (\(N=6\)): Approximates circular symmetry while retaining noticeable interference fringes.

2. Positioning the Sources

Determining the Coordinates of the Polygonal Vertices

To systematically analyze interference, we must precisely position the wave sources at the vertices of a chosen regular polygon. Given a polygon inscribed within a circle of radius \(R\), the coordinates of its vertices are:

\[x_i=R\cos\left(\frac{2\pi i}{N}\right),\quad y_i=R\sin\left(\frac{2\pi i}{N}\right),\quad i=0,1,2,\dots,N-1\]

Assigning Each Vertex as a Wave Source

Each vertex serves as a point source emitting circular waves with identical amplitude and frequency. The total wave field results from the superposition of these waves.

Each wave propagates outward from its source with a displacement function:

\[\eta_i(x,y,t)=\frac{A}{r_i}\cos\left(kr_i-\omega t+\phi_i\right)\]

where:

\(r_i=\sqrt{(x-x_i)^2+(y-y_i)^2}\) is the radial distance to the observation point.

3. Defining the Wave Equations

Mathematical Representation of Wave Motion

Each wave emitted from a point source follows the equation:

\[\eta_i(x,y,t)=\frac{A}{r_i}\cos\left(kr_i-\omega t+\phi_i\right)\]

where:

\(A\) is the amplitude,
\(k=\frac{2\pi}{\lambda}\) is the wave number,
\(\omega=2\pi f\) is the angular frequency,
\(\phi_i\) is the phase,
\(r_i\) is the radial distance from the \(i\)-th source.

Uniformity Assumptions

To maintain coherence in interference analysis, we assume:

All waves have the same amplitude, i.e., \(A\) is constant.
All waves have the same wavelength \(\lambda\) and frequency \(f\).
Initial phase differences between sources remain fixed.

4. Applying the Superposition Principle

Summation of Wave Displacements

According to the principle of superposition, the resultant displacement at any point on the water surface is the sum of individual wave contributions:

\[\eta_{\text{sum}}(x,y,t)=\sum_{i=1}^{N}\eta_i(x,y,t)\]

This summation captures constructive and destructive interference effects.

Constructive and Destructive Interference Conditions

Constructive interference: Occurs when phase differences satisfy:

\[kr_i-\omega t+\phi_i=2m\pi,\quad m\in\mathbb{Z}\]

Destructive interference: Occurs when phase differences satisfy:

\[kr_i-\omega t+\phi_i=(2m+1)\pi,\quad m\in\mathbb{Z}\]

5. Analyzing the Interference Patterns

Identifying Interference Zones

By computing \(\eta_{\text{sum}}(x,y,t)\), we can classify different regions: - High amplitude zones: Result from constructive interference. - Low amplitude zones: Result from destructive interference.

Temporal Evolution of the Pattern

As time progresses, the interference pattern evolves dynamically, influenced by wave frequency and phase differences.

6. Visualization and Simulation

Graphical Representations

Using numerical simulations, we generate: - Static interference maps for different polygons. - Time-evolving wave fields to observe changing interference dynamics.

Python Implementation

A Python script implementing the above equations will:

Define wave parameters.
Compute the interference pattern on a 2D grid.
Visualize results using heatmaps and contour plots.

The next step is to implement and analyze these interference patterns computationally.

Python/Models

alt text

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Define the grid
x = np.linspace(-10, 10, 500)
y = np.linspace(-10, 10, 500)
X, Y = np.meshgrid(x, y)

# Define wave parameters
wavelength = 2  # Wavelength
k = 2 * np.pi / wavelength  # Wave number
omega = 2 * np.pi / 5       # Angular frequency
t = 0  # Static time for snapshot (can be animated)

# Function to create a wave from a single source
def single_wave(X, Y, source):
    r = np.sqrt((X - source[0])**2 + (Y - source[1])**2)
    return np.sin(k * r - omega * t)

# Function to sum multiple waves from different sources
def multiple_waves(X, Y, sources):
    Z = np.zeros_like(X)
    for source in sources:
        Z += single_wave(X, Y, source)
    return Z

# ------------------------
# Sources definitions
# ------------------------
sources_1 = [(0, 0)]

distance = 5
sources_4 = [(-distance, -distance), (-distance, distance), (distance, -distance), (distance, distance)]

radius = 5
angles = np.linspace(0, 2 * np.pi, 6)[:-1]
sources_5 = [(radius * np.cos(a), radius * np.sin(a)) for a in angles]

# Custom color map blending burgundy (#800020) and lighter blue (#4682B4)
colors = ['#800020', '#400010', '#4682B4', '#87CEEB', '#800080']
custom_cmap = plt.cm.colors.LinearSegmentedColormap.from_list('burgundy_lightblue', colors)

# ------------------------
# Plotting Function
# ------------------------
def plot_wave(Z, title):
    fig, axs = plt.subplots(1, 2, figsize=(18, 8))  # BIGGER SIZE

    # Heatmap
    im = axs[0].imshow(Z, extent=[-10, 10, -10, 10], origin='lower', cmap=custom_cmap)
    axs[0].set_title(f"{title} - Heatmap", fontsize=18)
    axs[0].set_xlabel('X axis', fontsize=14)
    axs[0].set_ylabel('Y axis', fontsize=14)
    plt.colorbar(im, ax=axs[0])

    # 3D Surface
    ax = fig.add_subplot(1, 2, 2, projection='3d')
    ax.plot_surface(X, Y, Z, cmap=custom_cmap, edgecolor='none')
    ax.set_title(f"{title} - 3D Surface", fontsize=18)
    ax.set_xlabel('X axis', fontsize=14)
    ax.set_ylabel('Y axis', fontsize=14)
    ax.set_zlabel('Amplitude', fontsize=14)

    plt.tight_layout()
    # Removed plt.show() from inside the function

# ------------------------
# Calculate and plot all
# ------------------------
Z1 = multiple_waves(X, Y, sources_1)
Z4 = multiple_waves(X, Y, sources_4)
Z5 = multiple_waves(X, Y, sources_5)

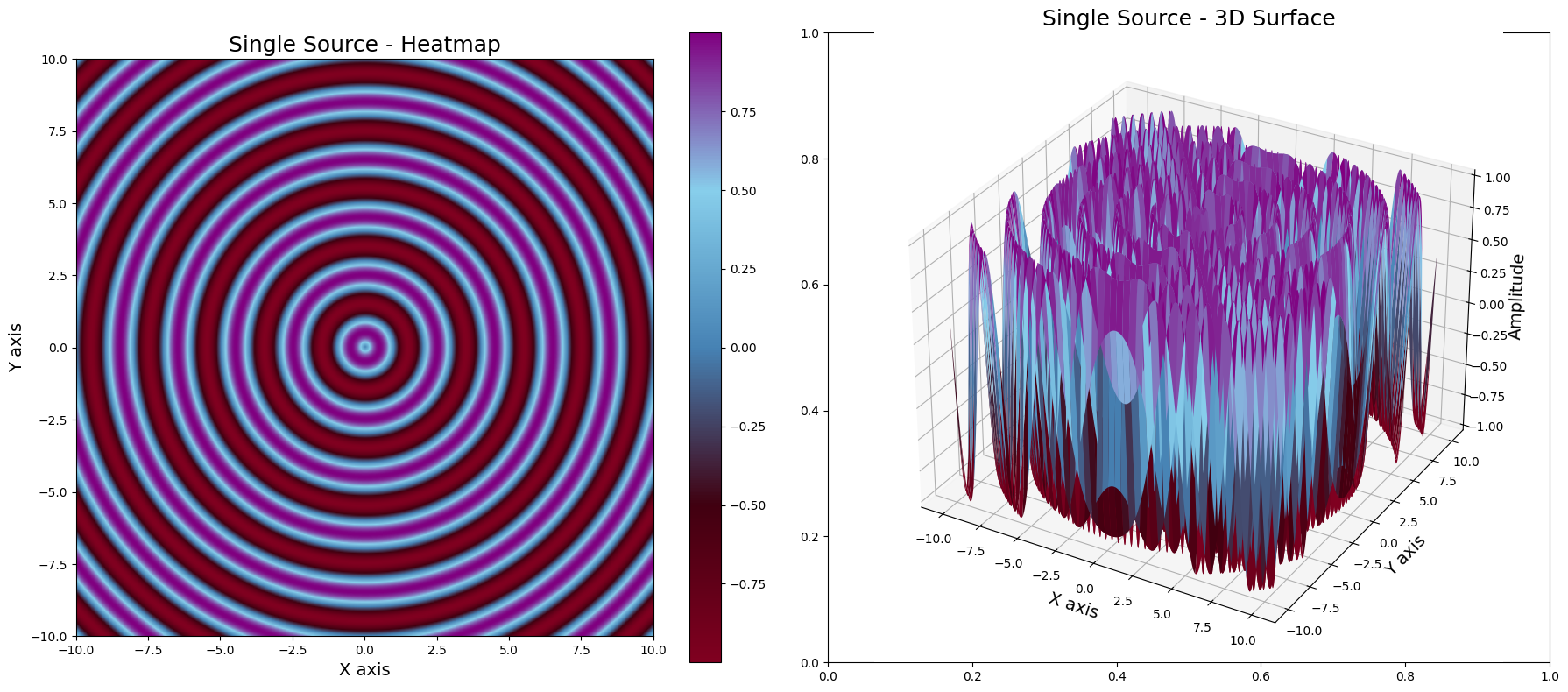

plot_wave(Z1, "Single Source")

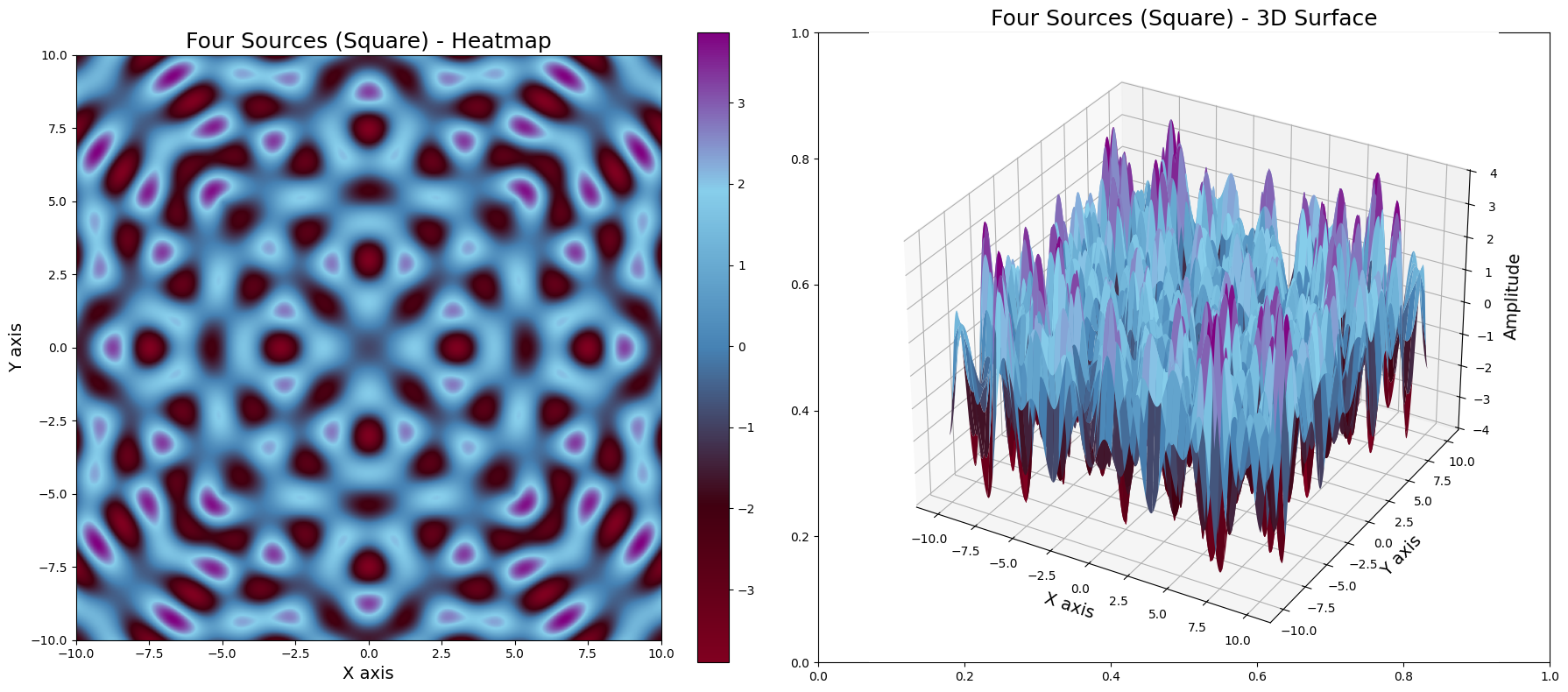

plot_wave(Z4, "Four Sources (Square)")

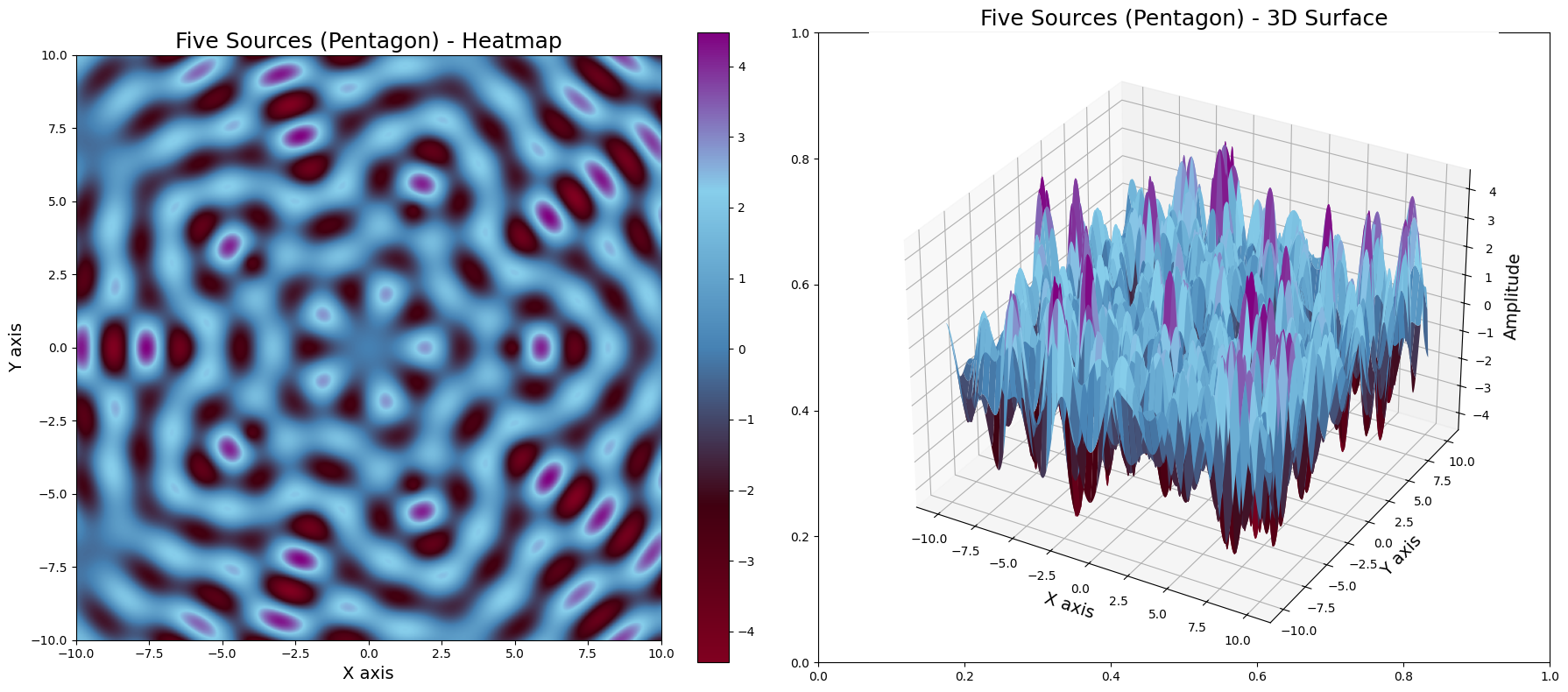

plot_wave(Z5, "Five Sources (Pentagon)")
plt.show()  # Moved plt.show() here to display all plots

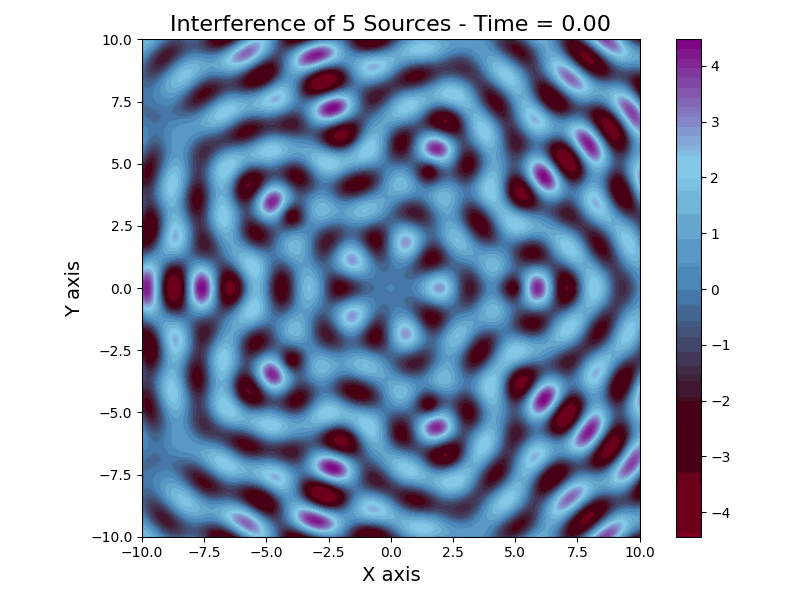

alt text

import numpy as np
import matplotlib.pyplot as plt
import imageio
import os

# Define the grid
x = np.linspace(-10, 10, 500)
y = np.linspace(-10, 10, 500)
X, Y = np.meshgrid(x, y)

# Define wave parameters
wavelength = 2  # Wavelength
k = 2 * np.pi / wavelength  # Wave number
omega = 2 * np.pi / 5       # Angular frequency

# Function to create a wave from a single source
def single_wave(X, Y, source, t):
    r = np.sqrt((X - source[0])**2 + (Y - source[1])**2)
    return np.sin(k * r - omega * t)

# Function to sum multiple waves from different sources
def multiple_waves(X, Y, sources, t):
    Z = np.zeros_like(X)
    for source in sources:
        Z += single_wave(X, Y, source, t)
    return Z

# Sources definitions for 5 sources (in a pentagon)
radius = 5
angles = np.linspace(0, 2 * np.pi, 6)[:-1]
sources_5 = [(radius * np.cos(a), radius * np.sin(a)) for a in angles]

# Create 3_waves folder if it doesn't exist
OUTPUT_DIR = "3_waves"
if not os.path.exists(OUTPUT_DIR):
    os.makedirs(OUTPUT_DIR)

# Custom color map blending burgundy (#800020) and lighter blue (#4682B4)
colors = ['#800020', '#400010', '#4682B4', '#87CEEB', '#800080']
custom_cmap = plt.cm.colors.LinearSegmentedColormap.from_list('burgundy_lightblue', colors)

# Create GIF frames
num_frames = 100
gif_frames = []

# Create the GIF frames for time from 0 to 2*pi
for i in range(num_frames):
    t = i * 2 * np.pi / num_frames  # Varying time
    Z = multiple_waves(X, Y, sources_5, t)

    # Plotting the frame
    fig, ax = plt.subplots(figsize=(8, 6))
    im = ax.imshow(Z, extent=[-10, 10, -10, 10], origin='lower', cmap=custom_cmap, animated=True)
    ax.set_title(f"Interference of 5 Sources - Time = {t:.2f}", fontsize=16)
    ax.set_xlabel('X axis', fontsize=14)
    ax.set_ylabel('Y axis', fontsize=14)
    plt.colorbar(im, ax=ax)

    # Ensure proper rendering
    plt.tight_layout()

    # Draw the figure to make sure it's rendered correctly before saving
    fig.canvas.draw()

    # Convert to image and append to GIF frames
    gif_frames.append(np.array(fig.canvas.renderer.buffer_rgba()))

    # Close the plot to avoid memory issues in the loop
    plt.close(fig)

# Create and save the GIF in the 3_waves folder
gif_path = os.path.join(OUTPUT_DIR, "interference_5_sources.gif")
imageio.mimsave(gif_path, gif_frames, duration=0.1)

print(f"GIF saved as {gif_path}")
