Problem 1

๐Ÿ“Š Simulating Sampling Distributions

๐ŸŽฏ Objective

To demonstrate the Central Limit Theorem (CLT), we begin by generating large populations from various distributions:

  • Uniform Distribution
  • Exponential Distribution
  • Binomial Distribution

Each dataset will represent a "population", from which we will later draw repeated random samples to study the behavior of their means.

๐Ÿ”ข Step 1: Generate Populations

Let: - \(N = 100000\) be the size of each simulated population.

We will define each population as follows:

  • Uniform Distribution:
\[X \sim \text{Uniform}(a=0, b=1)\]
  • Exponential Distribution:
\[X \sim \text{Exponential}(\lambda=1)\]
  • Binomial Distribution:
\[X \sim \text{Binomial}(n=10, p=0.5)\]

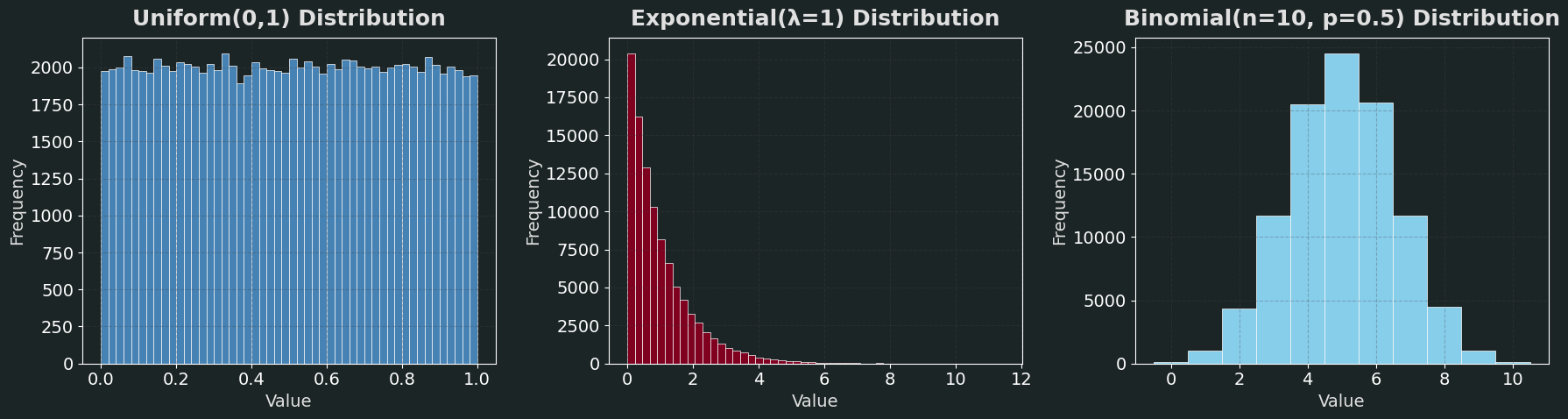

alt text

import numpy as np
import matplotlib.pyplot as plt

# Set seed for reproducibility
np.random.seed(42)

# Population size
N = 100_000

# --- Generate Populations ---
# 1. Uniform Distribution: U(0, 1)
population_uniform = np.random.uniform(low=0, high=1, size=N)

# 2. Exponential Distribution: Exp(ฮป=1)
population_exponential = np.random.exponential(scale=1.0, size=N)

# 3. Binomial Distribution: Binomial(n=10, p=0.5)
population_binomial = np.random.binomial(n=10, p=0.5, size=N)

# --- Set Styling for a Cooler Look ---
plt.style.use('dark_background')
plt.rcParams.update({
    'font.family': 'sans-serif',
    'font.size': 14,
    'axes.titlesize': 18,
    'axes.labelsize': 14,
    'axes.labelcolor': '#E0E0E0',
    'axes.facecolor': '#1C2526',
    'grid.color': '#444444',
    'grid.alpha': 0.3,
    'grid.linestyle': '--',
    'text.color': '#E0E0E0'
})

# --- Plot Histograms ---
fig, axs = plt.subplots(1, 3, figsize=(18, 5), facecolor='#1C2526')

# Uniform
axs[0].hist(population_uniform, bins=50, color='#4682B4', edgecolor='#FFFFFF', linewidth=0.5)
axs[0].set_title("Uniform(0,1) Distribution", pad=10, fontweight='bold')
axs[0].set_xlabel("Value")
axs[0].set_ylabel("Frequency")
axs[0].grid(True)

# Exponential
axs[1].hist(population_exponential, bins=50, color='#800020', edgecolor='#FFFFFF', linewidth=0.5)
axs[1].set_title("Exponential(ฮป=1) Distribution", pad=10, fontweight='bold')
axs[1].set_xlabel("Value")
axs[1].set_ylabel("Frequency")
axs[1].grid(True)

# Binomial
axs[2].hist(population_binomial, bins=range(0,12), color='#87CEEB', edgecolor='#FFFFFF', linewidth=0.5, align='left')
axs[2].set_title("Binomial(n=10, p=0.5) Distribution", pad=10, fontweight='bold')
axs[2].set_xlabel("Value")
axs[2].set_ylabel("Frequency")
axs[2].grid(True)

# Add a subtle glow effect with alpha for cooler visuals
for ax in axs:
    ax.patch.set_alpha(0.9)

plt.tight_layout()
plt.show()

๐Ÿงช Step 2: Modeling Sampling Distributions

๐ŸŽฏ Goal

To investigate the Central Limit Theorem (CLT) by modeling how sample means behave when taken from various population distributions.

๐Ÿ“š Central Limit Theorem (CLT)

The Central Limit Theorem asserts:

For a population with mean \(\mu\) and variance \(\sigma^2\), the distribution of the sample mean \(\bar{X}\) approximates a normal distribution as the sample size \(n\) grows โ€” irrespective of the original population's form.

In mathematical terms, if \(X_1, X_2, ..., X_n\) are independent and identically distributed (i.i.d.) random variables with mean \(\mu\) and variance \(\sigma^2\), then the standardized sample mean:

\[ Z = \frac{\bar{X} - \mu}{\sigma/\sqrt{n}} \]

approaches the standard normal distribution \(N(0, 1)\) in distribution as \(n\) becomes very large.

๐Ÿ› ๏ธ Simulation Strategy

We will:

  • Select a variety of sample sizes: \(n = 5, 10, 30, 50\)
  • For each \(n\):
  • Extract a large number of samples (e.g., 1000)
  • Calculate the sample mean for each sample
  • Gather all sample means to create the sampling distribution
  • Visualize histograms of these sampling distributions and monitor the trend toward normality

๐Ÿ Python Code

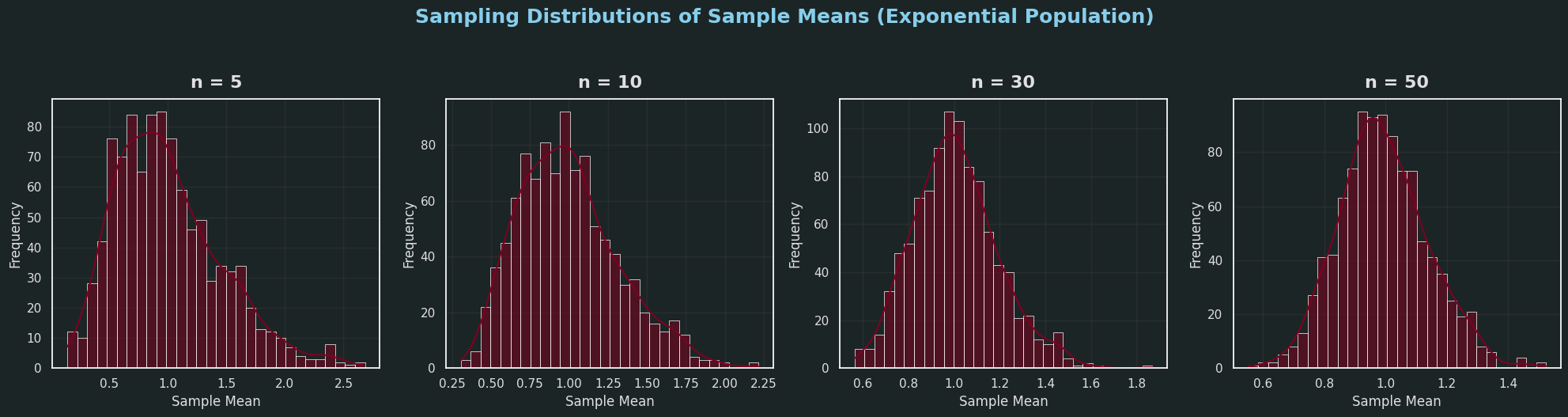

alt text

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# Set a custom dark theme with seaborn
sns.set(style="darkgrid", rc={"axes.facecolor": "#1C2526", "figure.facecolor": "#1C2526", "grid.color": "#444444", "grid.alpha": 0.3})

# Define population
N = 100_000
np.random.seed(42)
population = np.random.exponential(scale=1.0, size=N)

# Sample sizes to test
sample_sizes = [5, 10, 30, 50]
num_samples = 1000  # Number of samples per size

# Custom color palette inspired by burgundy (#800020) and lighter blue (#4682B4)
colors = ['#800020', '#4682B4', '#87CEEB', '#400010']  # Burgundy, Light Blue, Light Blue Accent, Dark Burgundy
sns.set_palette(sns.color_palette(colors))

# Plotting
fig, axs = plt.subplots(1, len(sample_sizes), figsize=(20, 5), facecolor='#1C2526')

for i, n in enumerate(sample_sizes):
    sample_means = []

    for _ in range(num_samples):
        sample = np.random.choice(population, size=n, replace=False)
        sample_means.append(np.mean(sample))

    sns.histplot(sample_means, bins=30, kde=True, ax=axs[i], edgecolor='#FFFFFF', linewidth=0.5)
    axs[i].set_title(f'n = {n}', fontsize=16, fontweight='bold', pad=10, color='#E0E0E0')
    axs[i].set_xlabel('Sample Mean', fontsize=12, color='#E0E0E0')
    axs[i].set_ylabel('Frequency', fontsize=12, color='#E0E0E0')
    axs[i].tick_params(colors='#E0E0E0')  # Match tick colors to text

    # Add a subtle glow effect with alpha
    axs[i].patch.set_alpha(0.9)

plt.suptitle('Sampling Distributions of Sample Means (Exponential Population)', fontsize=18, fontweight='bold', color='#87CEEB', y=1.05)
plt.tight_layout()
plt.show()

๐Ÿ“ˆ Step 3: Displaying Sampling Distribution Outcomes

๐ŸŽฏ Aim

  • Create histograms of the sample averages for each population distribution across different sample sizes.
  • Analyze the speed of convergence of these sampling distributions toward a normal shape.
  • Evaluate how the form of the initial population distribution influences convergence.

๐Ÿ”Ž Conceptual Foundation

Consider the Central Limit Theorem (CLT):

For independent, identically distributed random variables \(X_1, X_2, \ldots, X_n\) with mean \(\mu\) and variance \(\sigma^2\), the standardized sample mean

\[ Z = \frac{\bar{X} - \mu}{\sigma/\sqrt{n}} \]

tends toward a standard normal distribution \(N(0,1)\) as the sample size \(n\) grows infinitely large.

๐Ÿ“Œ Key Aspects to Note

  • Sampling distributions for small \(n\) mirror the population's shape.
  • With increasing \(n\), the sampling distributions turn more symmetric and bell-like.
  • The rate of convergence is influenced by the population distribution's:
  • Skewness
  • Kurtosis
  • Variance

๐Ÿ Python Code for Visualization

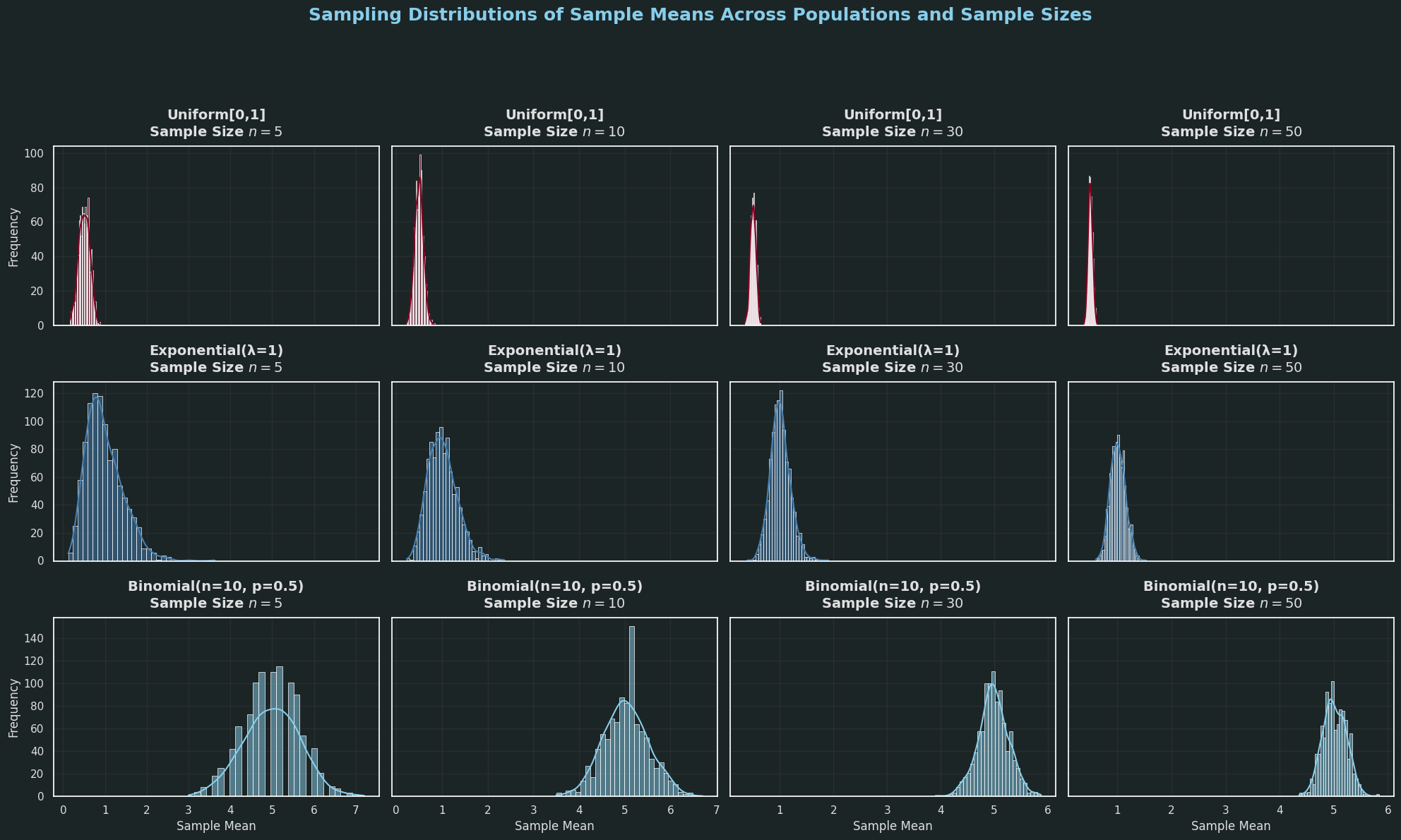

alt text

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# Set a custom dark theme with seaborn
sns.set(style="darkgrid", rc={"axes.facecolor": "#1C2526", "figure.facecolor": "#1C2526", "grid.color": "#444444", "grid.alpha": 0.3})

# Set random seed for reproducibility
np.random.seed(42)

# Population size
N = 100_000

# Generate populations
populations = {
    "Uniform[0,1]": np.random.uniform(0, 1, N),
    "Exponential(ฮป=1)": np.random.exponential(1, N),
    "Binomial(n=10, p=0.5)": np.random.binomial(n=10, p=0.5, size=N),
}

sample_sizes = [5, 10, 30, 50]
num_samples = 1000

# Custom color palette inspired by burgundy (#800020) and lighter blue (#4682B4)
colors = ['#800020', '#4682B4', '#87CEEB']  # Burgundy, Light Blue, Light Blue Accent
sns.set_palette(sns.color_palette(colors))

# Plotting
fig, axes = plt.subplots(len(populations), len(sample_sizes), figsize=(20, 12), sharex='col', sharey='row', facecolor='#1C2526')

for row_idx, (dist_name, population) in enumerate(populations.items()):
    for col_idx, n in enumerate(sample_sizes):
        sample_means = []
        for _ in range(num_samples):
            sample = np.random.choice(population, size=n, replace=False)
            sample_means.append(np.mean(sample))

        ax = axes[row_idx, col_idx]
        sns.histplot(sample_means, bins=30, kde=True, color=colors[row_idx % len(colors)], ax=ax, edgecolor='#FFFFFF', linewidth=0.5)
        ax.set_title(f"{dist_name}\nSample Size $n={n}$", fontsize=14, fontweight='bold', pad=10, color='#E0E0E0')
        if col_idx == 0:
            ax.set_ylabel('Frequency', fontsize=12, color='#E0E0E0')
        if row_idx == len(populations)-1:
            ax.set_xlabel('Sample Mean', fontsize=12, color='#E0E0E0')
        ax.tick_params(colors='#E0E0E0')  # Match tick colors to text
        ax.grid(True)

        # Add a subtle glow effect with alpha
        ax.patch.set_alpha(0.9)

plt.suptitle("Sampling Distributions of Sample Means Across Populations and Sample Sizes", fontsize=18, fontweight='bold', color='#87CEEB', y=1.02)
plt.tight_layout(rect=[0, 0.03, 1, 0.95])
plt.show()

๐Ÿ”Ž Step 4: Investigating Factors Shaping the Central Limit Theorem

๐ŸŽฏ Goals

  • Explore how the form of the initial population distribution impacts the speed of convergence to a normal shape.
  • Assess the effect of sample size \(n\) on the approximation to a normal distribution.
  • Study the influence of population variance \(\sigma^2\) on the dispersion of the sampling distribution of the mean.

1. Role of Population Distribution Form

  • The CLT ensures a move toward normality, but the pace of convergence hinges on the form of the population distribution.
  • Distributions with significant skewness or heavy tails (e.g., Exponential, Cauchy) need larger sample sizes for the sample mean to near normality.
  • For balanced and light-tailed distributions (e.g., Uniform, Binomial), the convergence tends to be quicker.

2. Effect of Sample Size \(n\)

  • The sampling distribution of the mean \(\bar{X}\) for sample size \(n\) exhibits:

$$ \text{Mean}(\bar{X}) = \mu $$

$$ \text{Variance}(\bar{X}) = \frac{\sigma^2}{n} $$

  • As \(n\) grows:

  • The variance of \(\bar{X}\) shrinks, making the sampling distribution more tightly clustered around \(\mu\).

  • Per the CLT, the distribution of \(\bar{X}\) nears the normal distribution:

$$ \bar{X} \xrightarrow{d} N\left(\mu, \frac{\sigma^2}{n}\right) $$

  • Visualizing various \(n\) values aids in tracking this clustering and shape evolution.

3. Influence of Population Variance \(\sigma^2\)

  • The spread of the sampling distribution is tied to the population variance \(\sigma^2\).
  • A larger \(\sigma^2\) results in greater variation in sample means.
  • This underscores the importance of knowing or estimating \(\sigma^2\) in statistical inference.

๐Ÿ“Š Overview of Connections

  • The interplay of population form, sample size, and variance dictates how swiftly and closely the sampling distribution of the mean approaches normality.

  • Core equation encapsulating the CLT:

$$ Z = \frac{\bar{X} - \mu}{\sigma/\sqrt{n}} \xrightarrow{d} N(0,1) $$

๐Ÿ Next: Python Code to Test These Factors

  • Model sampling distributions with varying:

  • Population forms (e.g., Uniform, Exponential, Binomial)

  • Sample sizes (\(n = 5, 10, 30, 50\))

  • Variances (e.g., by adjusting distribution scales)

  • Illustrate the outcomes to enhance comprehension of the CLT in practice.

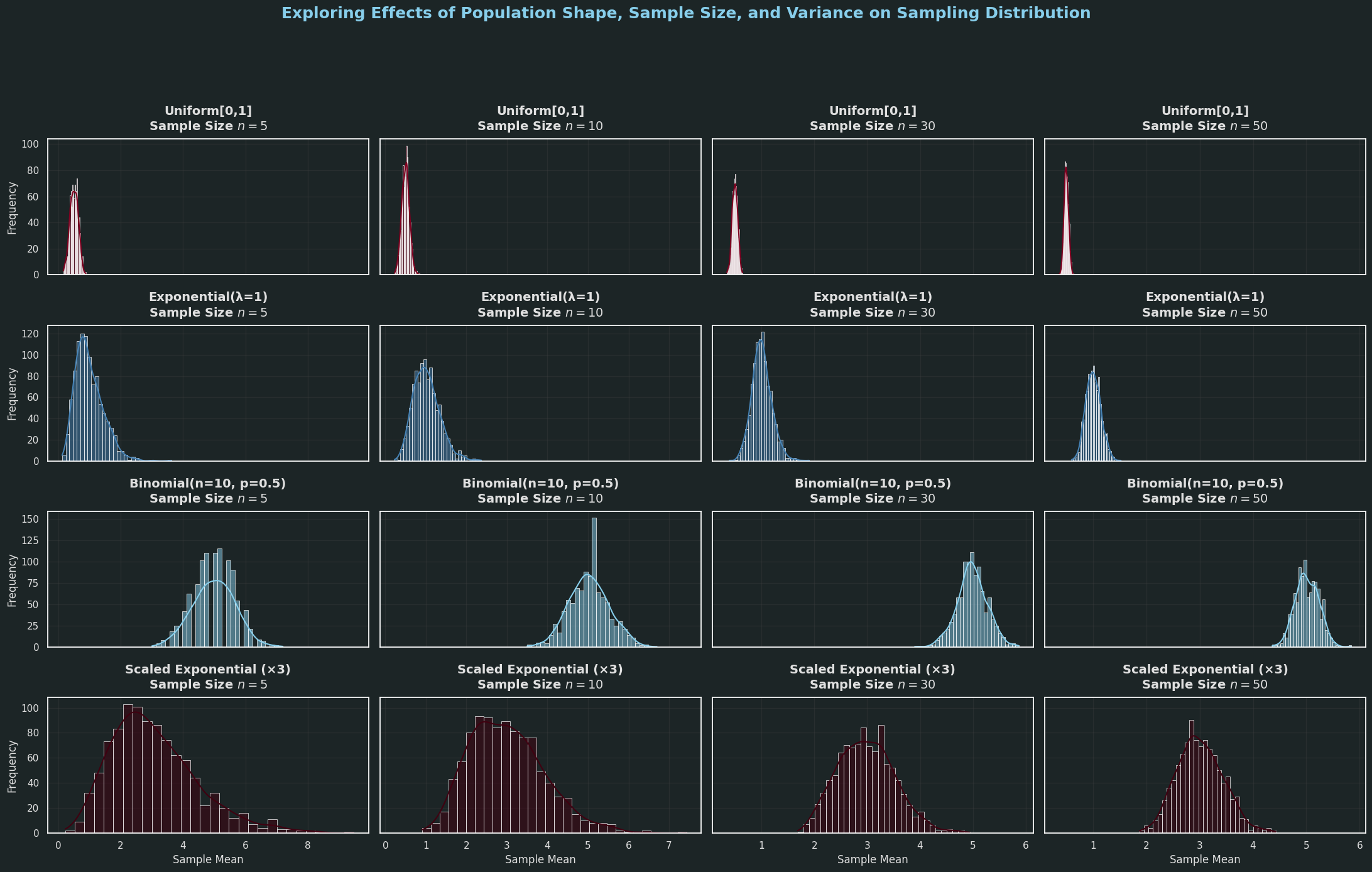

alt text

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# Set a custom dark theme with seaborn
sns.set(style="darkgrid", rc={"axes.facecolor": "#1C2526", "figure.facecolor": "#1C2526", "grid.color": "#444444", "grid.alpha": 0.3})

# Set random seed for reproducibility
np.random.seed(42)

# Population size for each distribution
N = 100_000

# Define original populations with different shapes and variances
populations = {
    "Uniform[0,1]": np.random.uniform(0, 1, N),                        # Variance = 1/12 ~0.083
    "Exponential(ฮป=1)": np.random.exponential(1, N),                  # Variance = 1
    "Binomial(n=10, p=0.5)": np.random.binomial(n=10, p=0.5, size=N), # Variance = np(1-p) = 2.5
}

# Scale exponential to higher variance for demonstration
populations["Scaled Exponential (ร—3)"] = populations["Exponential(ฮป=1)"] * 3  # Variance ~9

sample_sizes = [5, 10, 30, 50]
num_samples = 1000  # Number of samples per sample size

# Custom color palette inspired by burgundy (#800020) and lighter blue (#4682B4)
colors = ['#800020', '#4682B4', '#87CEEB', '#400010']  # Burgundy, Light Blue, Light Blue Accent, Dark Burgundy
sns.set_palette(sns.color_palette(colors))

# Plotting
fig, axes = plt.subplots(len(populations), len(sample_sizes), figsize=(22, 14), sharex='col', sharey='row', facecolor='#1C2526')

for row_idx, (dist_name, population) in enumerate(populations.items()):
    for col_idx, n in enumerate(sample_sizes):
        sample_means = []
        for _ in range(num_samples):
            sample = np.random.choice(population, size=n, replace=False)
            sample_means.append(np.mean(sample))
        ax = axes[row_idx, col_idx]
        sns.histplot(sample_means, bins=30, kde=True, color=colors[row_idx % len(colors)], ax=ax, edgecolor='#FFFFFF', linewidth=0.5)
        ax.set_title(f"{dist_name}\nSample Size $n={n}$", fontsize=14, fontweight='bold', pad=10, color='#E0E0E0')
        if col_idx == 0:
            ax.set_ylabel('Frequency', fontsize=12, color='#E0E0E0')
        if row_idx == len(populations) - 1:
            ax.set_xlabel('Sample Mean', fontsize=12, color='#E0E0E0')
        ax.tick_params(colors='#E0E0E0')  # Match tick colors to text
        ax.grid(True)

        # Add a subtle glow effect with alpha
        ax.patch.set_alpha(0.9)

plt.suptitle("Exploring Effects of Population Shape, Sample Size, and Variance on Sampling Distribution", fontsize=18, fontweight='bold', color='#87CEEB', y=1.02)
plt.tight_layout(rect=[0, 0.03, 1, 0.95])
plt.show()
